QUICK CONNECTS

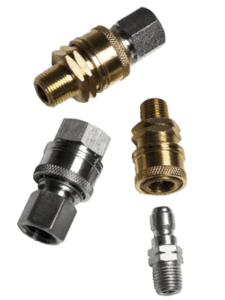

Quick Connect Sockets & Plugs*
Allows for Efficient Changeover and Installation
- FST Straight Thru Style: No Check Valve in Socket or Plug
- Materials: Brass, Zinc Plated Steel and Stainless Steel
- Size: 1/4″, 3/8″ and 1/2″ in Both Male and Female Configurations
- Buna-N O-Ring: Excellent Ozone, Chemical and Aging Resistance
- Viton® O-Ring: Standard on Items 14-0389 and 14-0376
- Viton® Replacement O-Rings: Available Upon Request and Sold Separately
- Temperature (Min/Max):
Operating Range –40°F/250°F - Optional Viton® O-ring Temperature (Min/Max): Operating Range –15°F / 400°F
*Standard 24-hour shipping commitment not guaranteed for quick connects; please contact your service team for availability.
1/4" Quick Connects
Item Code | Description
10-0400 | QC 1/4" MNPT ZINC STEEL PLUG
10-0402 | QC 1/4" MNPT S.S. PLUG
10-0406 | QC 1/4" MNPT BRASS PLUG
14-0399 | QC 1/4" FNPT ZINC STEEL PLUG
14-0403 | QC 1/4" FNPT S.S. PLUG
14-0411 | QC 1/4" FNPT BRASS PLUG
14-0396 | QC 1/4" FNPT BRASS SOCKET
14-0397 | QC 1/4" MNPT BRASS SOCKET
14-0414 | QC 1/4" FNPT S.S. SOCKET
3/8" Quick Connects
Item Code | Description
10-0391 | QC 3/8" MNPT S.S. PLUG
10-0401 | QC 3/8" MNPT ZINC STEEL PLUG
10-0407 | QC 3/8" MNPT BRASS PLUG
14-0377 | QC 3/8" FNPT S.S. PLUG
14-0390 | QC 3/8" FNPT ZINC STEEL PLUG
14-0412 | QC 3/8" FNPT BRASS PLUG
14-0376 | QC 3/8" FNPT S.S. SOCKET

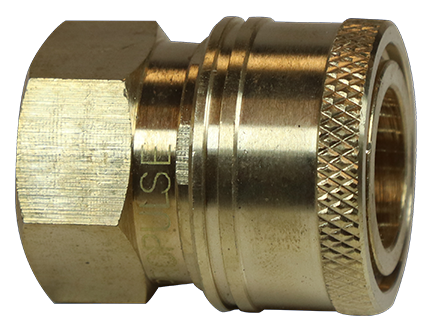

14-0389 | QC 3/8" FNPT BRASS SOCKET VITON ORING
14-0398 | QC 3/8" MNPT BRASS SOCKET
1/2" Quick Connects
Item Code | Description
14-0405 | QC 1/2" MNPT STEEL PLUG
14-0408 | QC 1/2" MNPT BRASS PLUG
14-0410 | QC 1/2" FNPT STEEL PLUG
14-0413 | QC 1/2" FNPT BRASS PLUG
14-0404 | QC 1/2" MNPT BRASS SOCKET
14-0409 | QC 1/2" FNPT BRASS SOCKET
1/4" Quick Connects
1/4" PLUGS
14-0400
QC 1/4" MNPT ZINC STEEL PLUG
14-0402
QC 1/4" MNPT S.S. PLUG
14-0406
QC 1/4" MNPT BRASS PLUG
14-0399
QC 1/4" FNPT ZINC STEEL PLUG
14-0403
QC 1/4" FNPT S.S. PLUG
14-0411
QC 1/4" FNPT BRASS PLUG
1/4" SOCKETS
14-0396
QC 1/4" FNPT BRASS SOCKET
14-0397
QC 1/4" MNPT BRASS SOCKET
14-0414
QC 1/4" FNPT S.S. SOCKET
3/8" Quick Connects
3/8" PLUGS
14-0391
QC 3/8" MNPT S.S. PLUG
14-0401
QC 3/8" MNPT ZINC STEEL PLUG
14-0407
QC 3/8" MNPT BRASS PLUG
14-0377
QC 3/8" FNPT S.S. PLUG
14-0390
QC 3/8" FNPT ZINC STEEL PLUG
14-0412
QC 3/8" FNPT BRASS PLUG
3/8" sockets
14-0376
QC 3/8" FNPT S.S. SOCKET
14-0389
QC 3/8" FNPT BRASS SOCKET VITON ORING
14-0398
QC 3/8" MNPT BRASS SOCKET
1/2" Quick Connects
1/2" PLUGS
14-0405
QC 1/2" MNPT STEEL PLUG
14-0408
QC 1/2" MNPT BRASS PLUG
14-0410
QC 1/2" MNPT BRASS PLUG
14-0413
QC 1/2" FNPT BRASS PLUG
1/2" sockets
14-0404
QC 1/2" MNPT BRASS SOCKET
14-0409
QC 1/2" FNPT BRASS SOCKET
