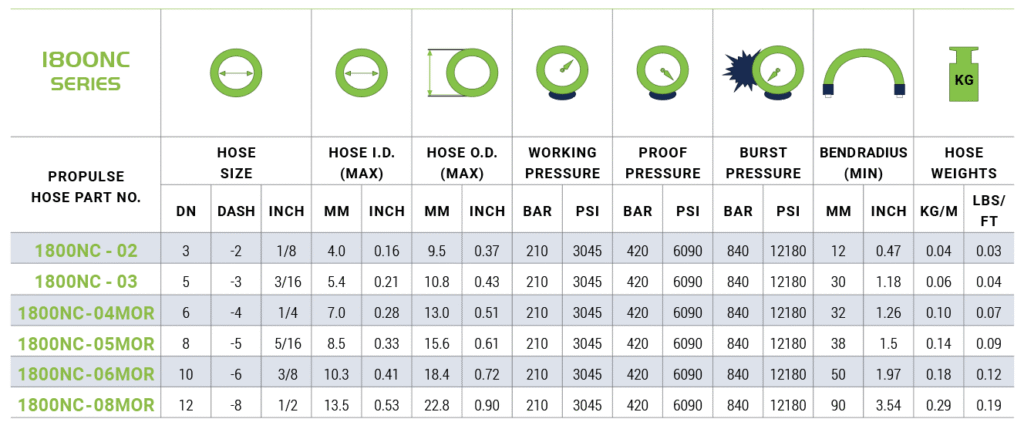

1800NC series
non-conductive thermoplastic hydraulic hose
Hose Construction:
- Inner Tube: Oil resistant thermoplastic
- Reinforcement: One or two layers of high tenacity yarn
- Cover: Oil resistant thermoplastic elastomer with high ozone and abrasion resistance (-2 and -3 are smooth cover; -4 through -8 are matte textured cover)
Main Applications:
- Medium pressure hydraulic application that requires high
flexibility, tight bend radius and good abrasion resistance
to weather and ozone - Cranes, bucket trucks, scissor lifts, man baskets
Temperature Range:
- -40°F / +212°F
- -40°C / +100°C
Fully Meets or Exceeds the Following Specifications:
- SAE 100R18 / 100R7*
Note:
- Not all sizes stocked at all times. Some specifications may vary. Please inquire about availability. ProPulse reserves the right to make any engineering or material changes at any time to our products for enhancement, performance, and quality.
- Made in USA.
* This hose is dual branded—it meets or exceeds all SAE 100R7 requirements.
Benefits of Thermoplastic Hydraulic Hose:
- Abrasion resistant matte cover
- Unlimited shelf life
- High impulse life
- No pin holes
- 20% lighter than rubber hose
- UV, ozone, and chemical resistance
- Made in the USA
