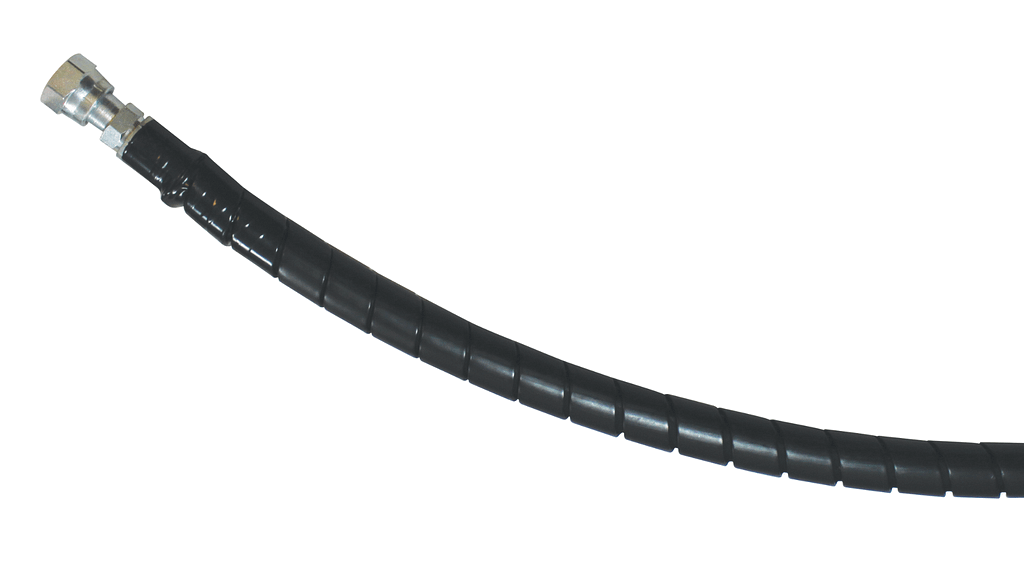

Spiral guard

for Hydraulic Hose

Spiral guarding can be applied during or after a hose is crimped. ProPulse spiral guard is made of heavy duty high density polyethylene and can be used in applications from -40°F to 280°F. Spiral guarding offers a strong flexible solution with a flat profile and beveled edges. Spiral guard can protect hose from impact, abrasion, cuts and crushing loads as well as provide for UV protection. In some applications spiral guarding is used to keep bundles of hoses together to keep routing neat and hoses protected

Spiral Features:

  • High Density Polyethylene

Applications:

  • Bundling multiple hoses
  • Prevents hose wear due to impact, abrasion and friction

Specifications:

  • Flat profile with beveled edges for safety
  • Temperature Range: -40°F to +280°F
  • UV Resistant
  • Strong, flexible and lightweight
  • Made in the USA

Note:

Not all sizes stocked at all times. Some specifications may vary. Please inquire about availability. ProPulse reserves the right to make any engineering or material changes at any time to our products for enhancement, performance, and quality.

PROPULSE PART NUMBERI.D. INCHESHOSE O.D. RANGE OPENING (INCH)HOSE O.D. RANGE OPENING (MM)
PSG-380.380.39 - 0.6610 - 17
PSG-500.50.47 - 0.8612 - 22
PSG-620.620.62 - 1.0616 - 27
PSG-950.8750.86 - 1.3722 - 35
PSG-1.12511.06 - 1.6927 - 43
PSG-1.501.51.30 - 2.1733 - 55
PSG-1.751.751.75 - 2.5242 - 64
PSG-2.2522.05 - 2.9552 - 75
PSG-2.622.6252.56 - 3.8065 - 97
PSG-3.0033.15 - 4.3080 - 110
PSG-4.0043.80 - 4.9094 - 125
PSG-5.0054.8 - 6.00122 - 152
PSG-6.0065.70 - 7.00+145 - 178
